AMSC Cushioned Ball Mounts

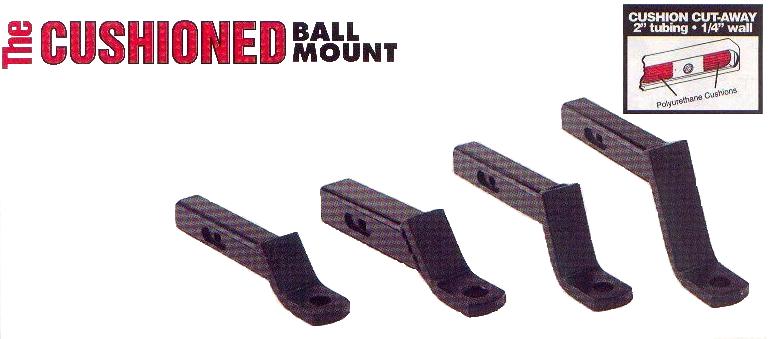

The Cushioned Ball Mount by Convert-A-Ball acts as a shock absorber. Protects the towing vehicle's driveline, hitch assembly and trailer contents. Easy to install. Proven effective in reducing bounce and rhythmic vibrations. For use with underframe receiver hitch with a 2" square socket. Class 4, V-5 SAFE!



NOTE: The AMSC Series is available in 10" and 12" drops (not shown) and may be used as a drop or a rise. The shanks are 2" x 2" tube with 1/4" wall thickness. Shank hole is 1" diameter. The hitch pin hole receives a standard 5/8" hitch pin. Maximum trailer weight of 10,000 lbs and max tongue weight of 2,000 lbs. Rated Class 4, V-5. Meets SAE Standard J-684.

_______________________________________________________________________________

NOW AVAILABLE FROM CONVERT-A-BALL

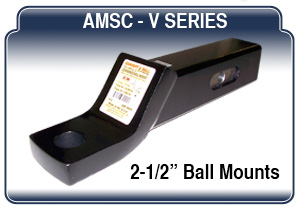

A Cushioned Ball Mount for the 2-1/2" Receiver. The AMSC-V features an 18,000 lb Maximum GVW and 2,000 lb Max Tongue Weight. 1" Thick Tongue with a 1-1/4" hole and 1/4" Thick Tube Walls . These heavy duty ball mounts are available standard in 2", 4" or 6" drops which can be flipped over for use as a rise.

$95.00

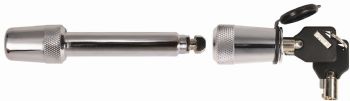

Locking Hitchpins for your Ball Mount

For 2" Receivers
For 2-1/2" Receivers
Other Cushioned Ball Mounts Price
6W - CUSHIONED MULTI-HITCH. Introducing the All New Cushioned Multi-Hitch. It is a cushioned, 6-way, rotatable hitch. Receives pintle ring, spade, clevis and all three ball sizes. $109.95
CUSHIONED ROLL-A-HITCH. Telescoping Cushioned hitch extends 7" beyond towing position and swivels 12" left and right for fast, easy hookups anywhere. Just pull forward to lock in center and then back up to lock in towing position. Max trailer weight 10,000 lbs and maximum tongue weight 1000 lbs. per SAE J-684 V-5. Hitch pins included. $219.00
The AMCC-2 is cushioned and may be used as a ball mount but is designed as an AG Clevis hitches. The shank is a 2" x 2" tube with 1/4" wall thickness and a 1" diameter shank hole. The hitch pin hole receives a standard pin. Rated Class 4, V-5 and meets SAE standard J684. The AMCC-2 is rated at 10,000 lbs with a 2000 lb max tongue weight and can be used for a pintle ring. $75.00

Cushioned Pintle Hitches


The PH-2 - Cushioned Pintle Hitch features a Nickel-Plated 3-ball Convert-A-Ball set and a pintle sleeve.

For use in a standard 2” receiver hitch. The PH-2 will fit the blind hole receivers as well as the regular open receiver.

16,000 lb gross weight and 800 lb maximum tongue weight.
Meets SAE standard J-847.

$199.00

The PH-1 - Bolt-on Pintle Hitch features a Stainless Steel 3-ball Convert-A-Ball set and a pintle sleeve.

Has a standard bolt-on pattern for attaching to a flat surface or one of the AMPC cushioned adapters (see below).

25,000 lb gross weight and 5,000 lb maximum tongue weight. Meets SAE standard J-847

$215.00

The AMPC Series is a cushioned adapter compatible with the PH-1 as well as several aftermarket mounts.They may be used as drops or risers. Shanks are a 2" x 2" tube with 1/4" wall thickness. The hitch pin hole receives a standard pin. Uses 4 grade 8-9/16 18-UNF bolts. Be sure they are long enough for mounting purposes. Maximum trailer weight of 10,000 lbs and max tongue weight of 2000 lbs. Rated Class 4 V-5. Meets SAE Standard J684.

AMPC1AMPC2AMPC3
